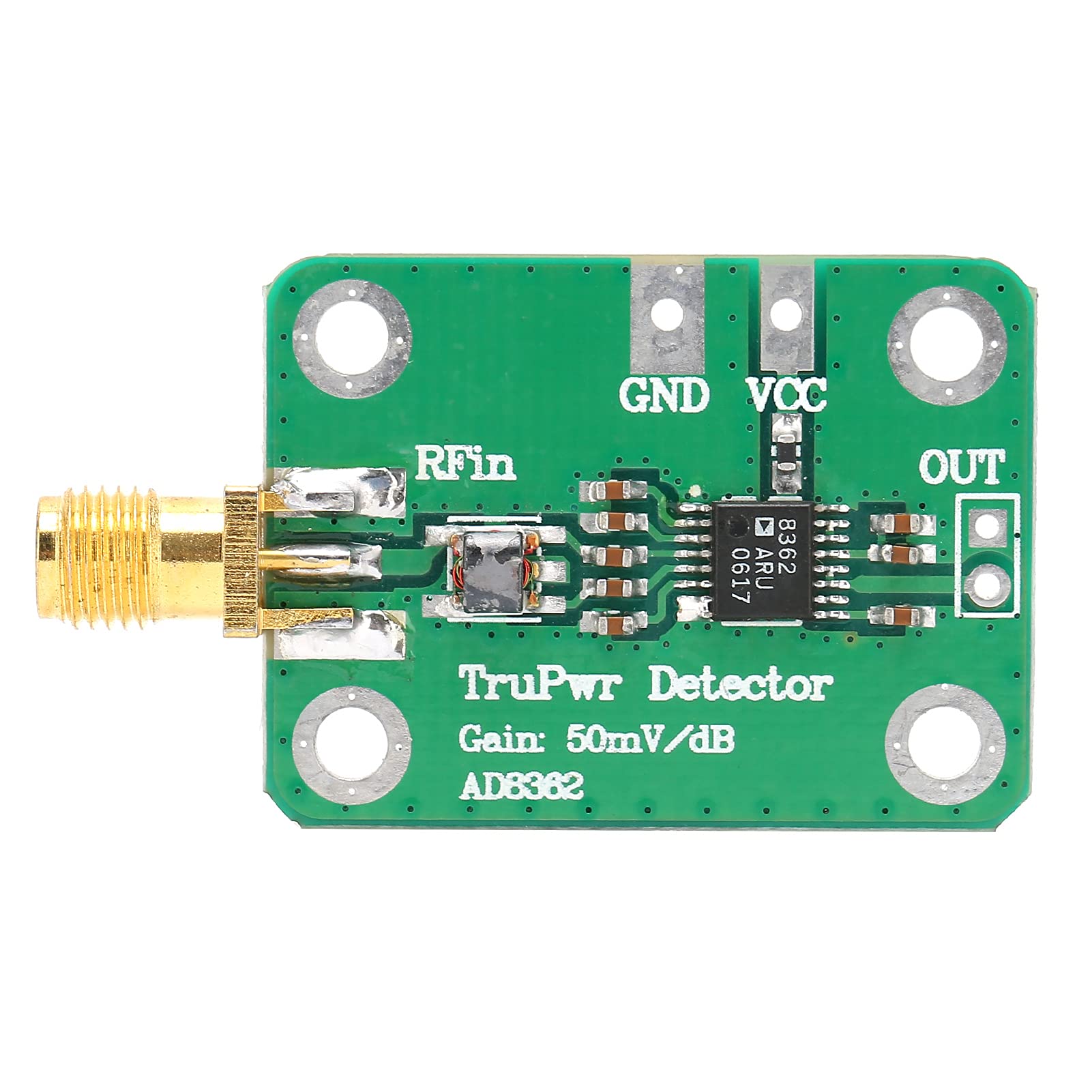

RF Power Detection Board - Signal Strength Meter for Complex Modulated Signals | Wide-Band Power Measurement Tool | Ideal for RF Testing, Wireless Communication & Signal Analysis

Feature:1. The detector module is mainly used to detect some useful information in fluctuating signals.2. This module is suitable for wide‑band power detection, with flat input and output response.3. Suitable for IS95, CDMA2000, 3GPP, GSM/EDGE, MMDS and other broadband access equipment.4. Can detect the RF power of complex modulated signals, including CDMA, W‑CDMA, 8PSK, QAM and OFDM signals.5. The detector module is small and compact, easy to install and use, and has strong practicability.Specification:Item Type: Detector ModuleMaterial: PCBModel: AD8362Operating Frequency: 50Hz-3.8GHz,Input Range: 60dB, at 50Ω, the input signal can be from -52 dBm to +8dBm.Working Mode: VOUT and VSET Package List:1 x Detector ModuleNote:1. Do not use overload2. Do not use over‑voltage3. Do not use over current

【Applications】Suitable for IS95, CDMA2000, 3GPP, GSM/EDGE, MMDS and other broadband access equipment.

【Detecting Signals】Can detect the RF power of complex modulated signals, including CDMA, W‑CDMA, 8PSK, QAM and OFDM signals.

【Main Use】The detector module is mainly used to detect some useful information in fluctuating signals.

【With Flat Response】This module is suitable for wide‑band power detection, with flat input and output response.

【Small and Compact】The detector module is small and compact, easy to install and use, and has strong practicability.
